Formula for “H Beam Weight in kg”
To calculate the weight of an H-beam (also called I-beam), the standard formula is:
Weight (kg) = Section Area (cm²) × Length (m) × 0.00785
Where:
- Section Area (cm²) is the cross-sectional area of the H-beam.
- Length (m) is the total length of the H-beam in meters.
- 0.00785 is the density of steel in kg/cm³.
Table of Contents
What is H Beam Weight?

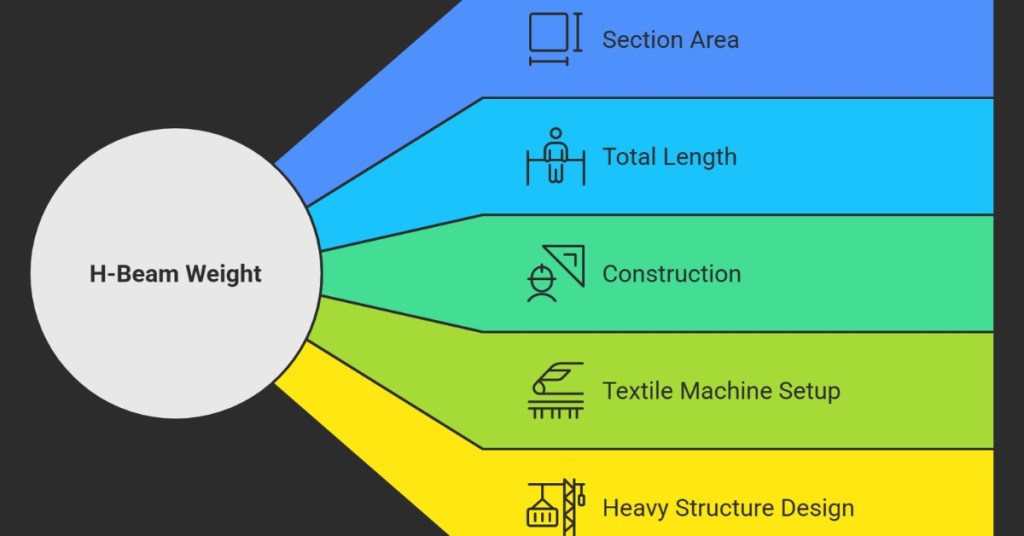

H-beam weight in kg tells you how heavy a steel beam is. It helps people in construction, textile machine setup, and heavy structure design. The weight depends on the section area and the total length of the beam. H beams are often used in textile machinery setups to support frames or structures.
Why H Beam Weight is Important in Textile Manufacturing
In textile manufacturing, engineers often work with machines that need strong base structures. H beams support heavy machinery like dyeing machines, looms, and knitting machines. Knowing the exact weight of an H beam helps plan transport, setup, and safety.
As a textile engineer, I have seen beams used in compact dyeing units and industrial textile factories. The weight of the beam helps ensure the base can hold all loads during operation.
Example of H Beam Weight Calculation
Let’s take an example:
- Section Area = 150 cm²
- Length = 6 meters
- Density = 0.00785
Weight = 150 × 6 × 0.00785 = 7.065 kg
So, the H beam weight is 7.07 kg.
This type of calculation is useful in textile engineering. For example, a six-meter beam might be used under a yarn dyeing machine. Engineers calculate this to avoid overloading the floor or transport vehicle.
Use of H Beam in Textile Machines
In spinning mills and knitting factories, H beams are used to make machine stands, walkways, and heavy platforms. The correct weight ensures safety and prevents beam bending. Using the wrong beam size or weight may cause accidents or machine failure.
Common Beam Sizes in the Textile Industry
| Beam Size (mm) | Area (cm²) | Common Length (m) | Approx. Weight (kg) |
|---|---|---|---|
| 100×100 | 21.4 | 6 | 1.008 |
| 200×200 | 60.5 | 6 | 2.85 |
| 300×300 | 120.7 | 6 | 5.68 |
| 400×400 | 160.8 | 6 | 7.57 |
These values may vary by manufacturer. Always confirm the section area from the steel charts before calculation.
H Beam Weight Calculator (Online)
You can use an online calculator to save time. Input the section area and length. It will show the weight in seconds. Our calculator at Textile Calculator is fast and free. It helps textile engineers check weight during the planning stage.
Benefits of Using Online Calculators
- Fast results
- Accurate output
- No manual math
- Easy interface
Online tools save time during factory design. I use them when planning fabric dyeing plant layouts or floor support systems.
Safety and Load Planning
Steel beam weight is a factor in safety. In the textile industry, machines shake during operation. Lightweight beams may bend or break. Calculating weight helps match the correct beam size with the machine load. This step prevents damage and downtime.
Example: A high-speed circular knitting machine produces strong vibrations. A 150 cm² beam under it must be checked to avoid collapse.
Tips for Engineers and Buyers
- Always ask for the beam’s section area from suppliers.
- Use the calculator to check the weight.
- Match the beam strength with the machine load.
- Choose standard lengths like 6m or 12m.
- Confirm beam quality from mill certificates.
In my textile project for a dyeing unit, I once used an incorrect beam size. The structure was unstable. After recalculating the weight and replacing it, the structure passed inspection.
Conclusion
H beam weight in kg is easy to calculate. Use the formula:
Weight = Section Area × Length × 0.00785
As a textile engineer, I recommend using online calculators for fast and safe planning. Accurate beam weight helps avoid risks in textile factories. Always cross-check section area, match the load, and ensure safety in machine setups.
